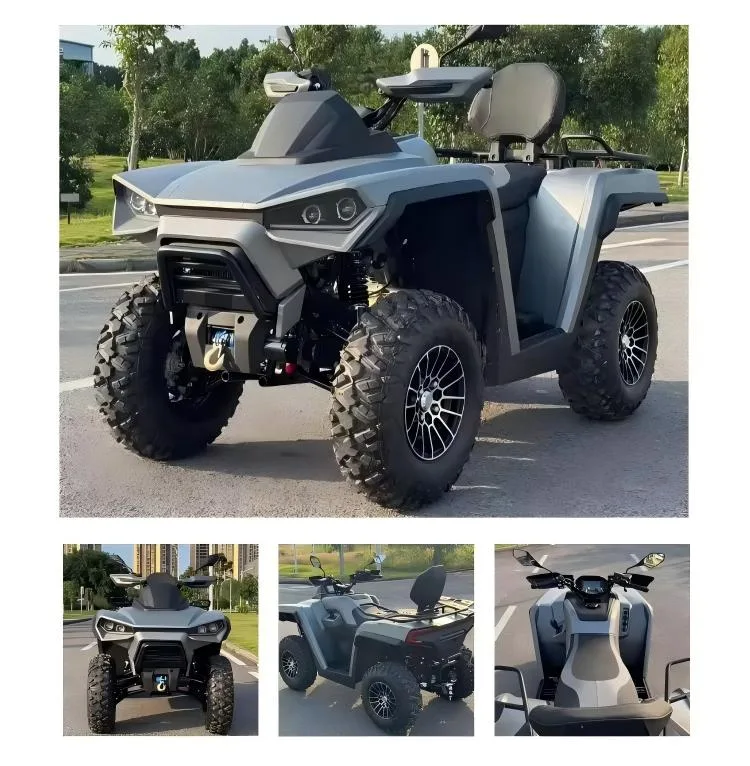

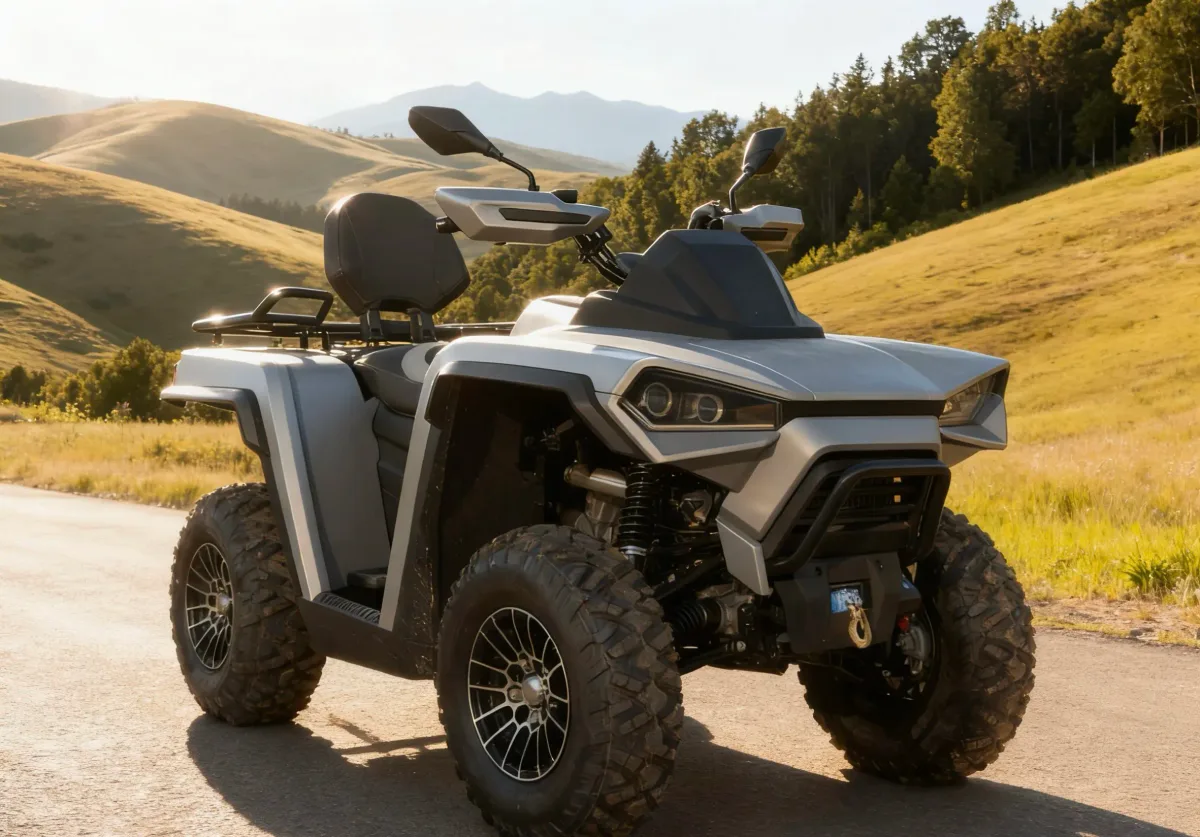

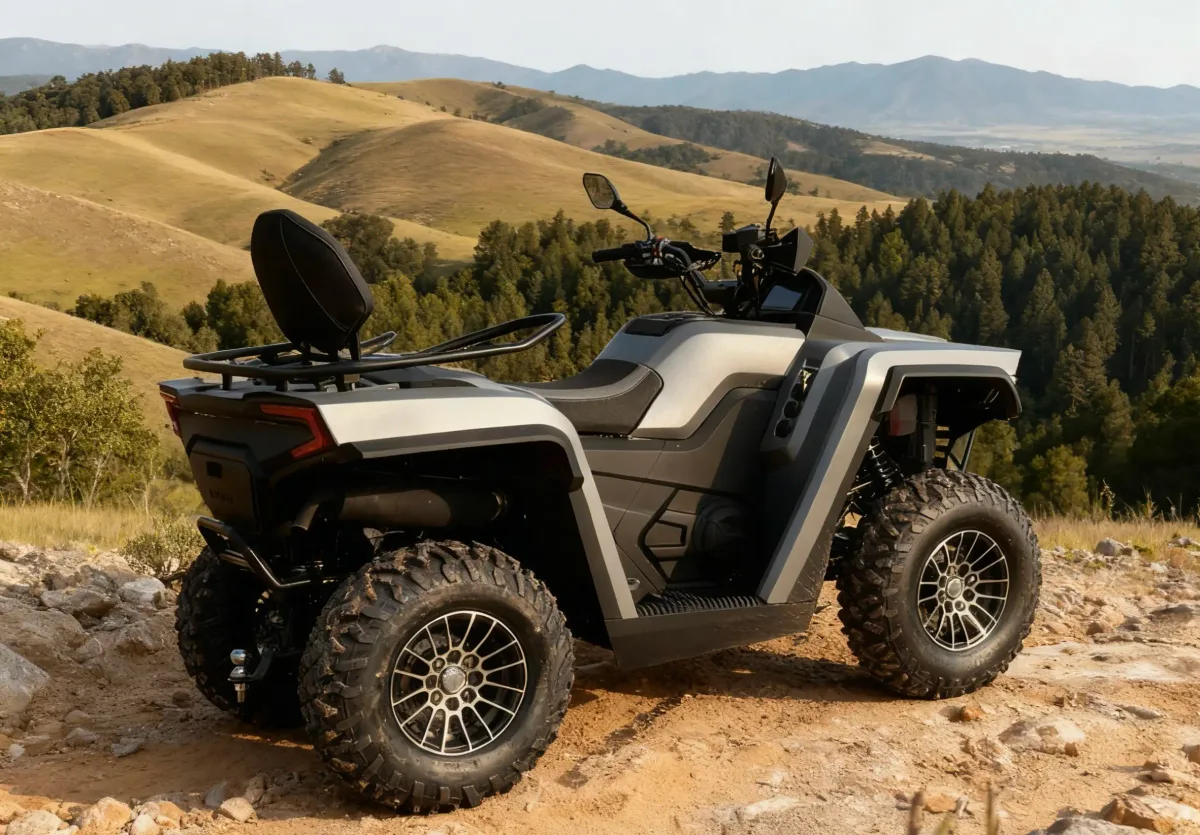

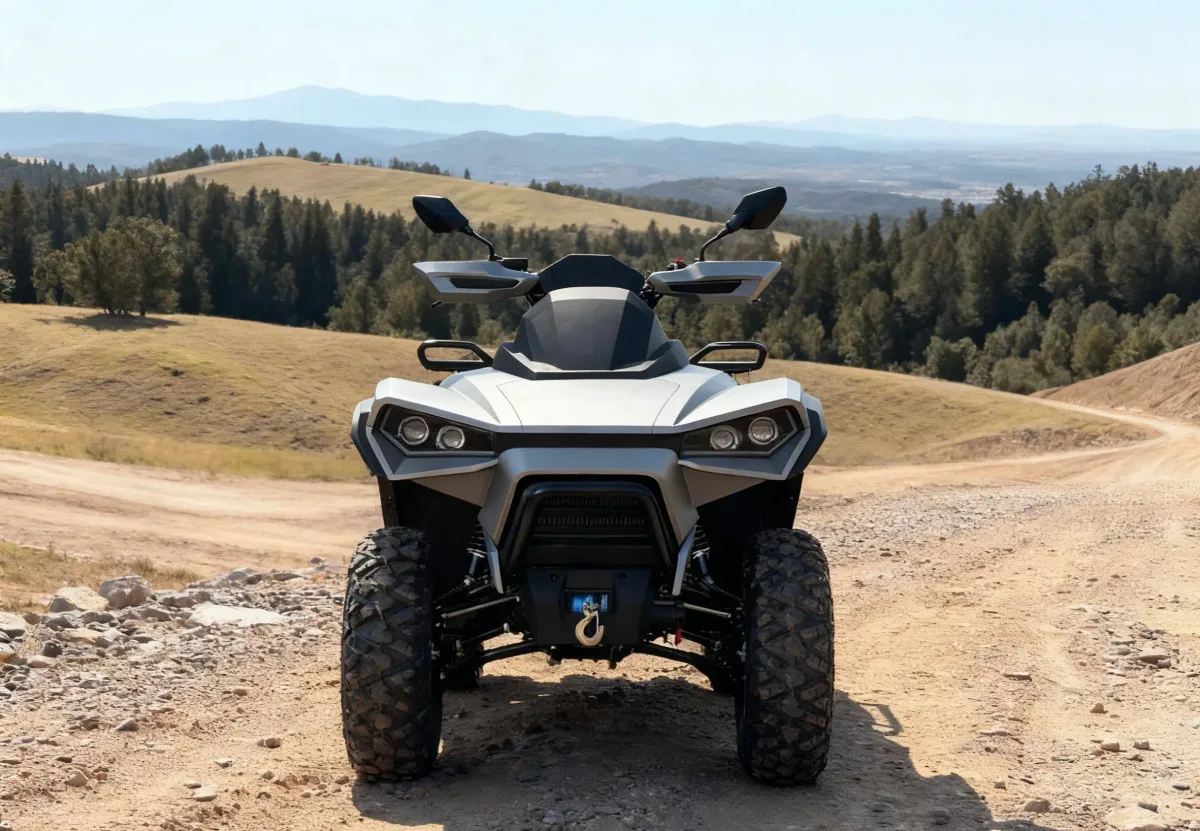

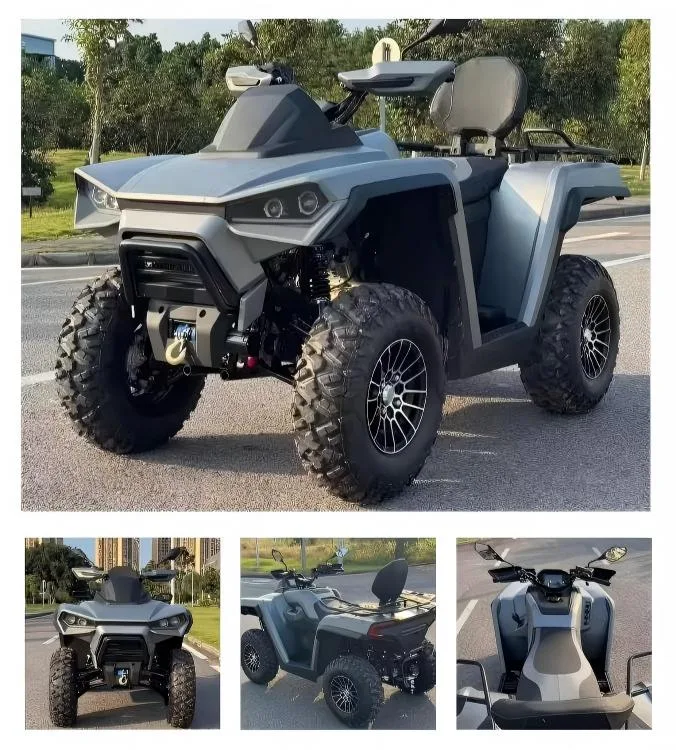

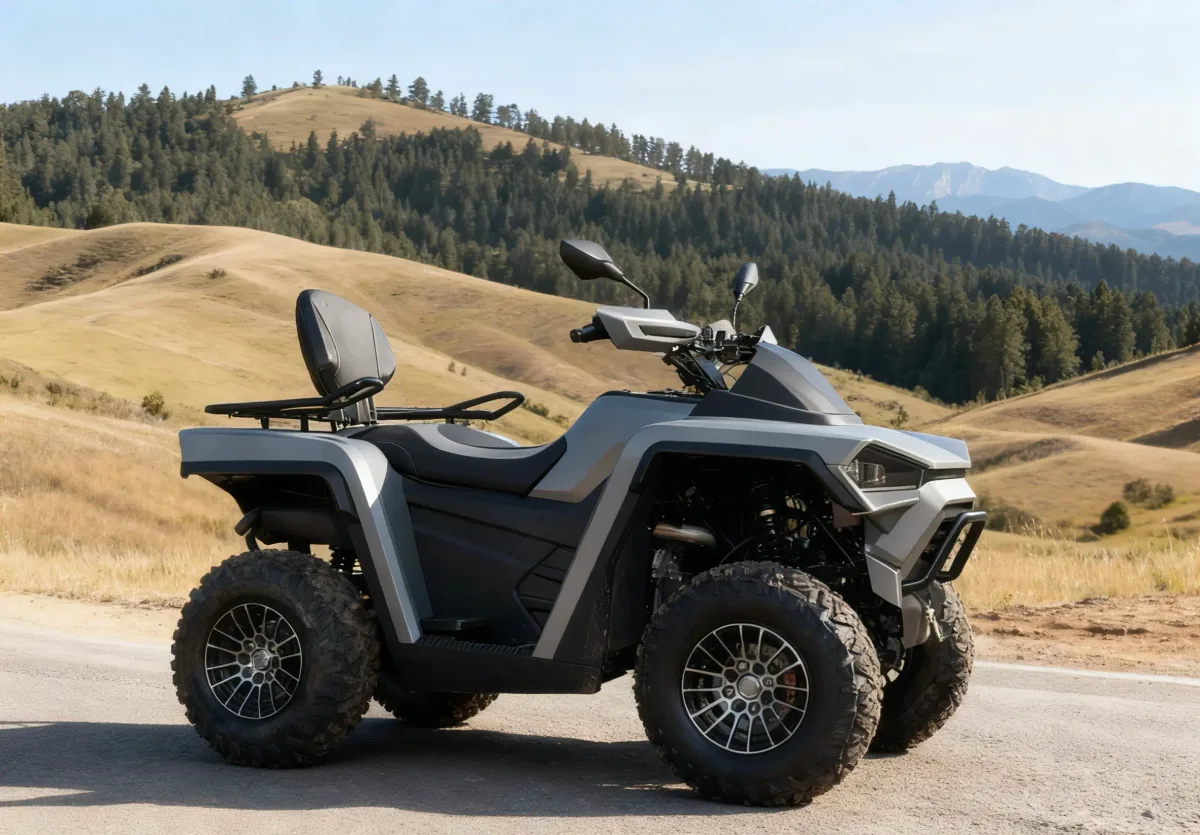

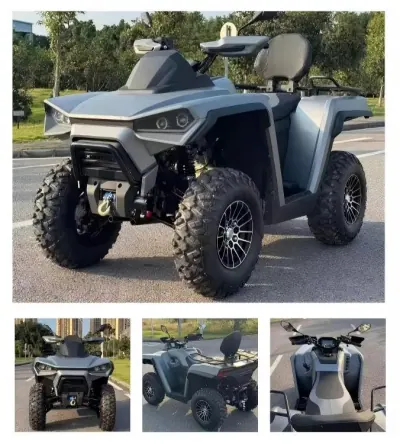

600CC 4x4 Adult Gasoline Utility ATV with Electric Start & Automatic Shaft Drive

Partner Line

This product is manufactured at our partner factory, with dedicated on-site QC monitoring every batch from start to finish. We apply the same quality control standards as our own production lines, ensuring consistent, stable quality across all bulk deliveries.

Price

Price varies with configuration, order quantity, and destination port. Contact us for a quote tailored to your order.

MOQ

10

Trade & Cooperation

Lead Time
15 days
Payment
T/T, L/C, Credit Card, PayPal, Western Union, Escrow
Monthly Capacity
1000 units/month
Port
Major China ports (shipped from the nearest)
Packing
Packaging: Individually packaged Container loading: 27 pcs/40HQ
  • • 580cc liquid-cooled, fuel-injected 4-stroke engine delivers 45 HP / 51 N·m with strong low-end torque for dependable performance on slopes, mud, and sand — reducing unplanned downtime
  • • Electronically switchable 2WD/4WD with differential lock distributes traction on demand, minimizing the risk of getting stuck or slipping and maximizing uptime in demanding terrain
  • • CVT automatic transmission with H/L/N/R/P ranges eliminates frequent manual gear changes, lowering driver training costs and the risk of operator error
  • • Four-wheel disc brakes, manual parking brake, and double wishbone independent suspension ensure stable hill parking and confident high-speed braking, reducing safety-related after-sales issues
  • • 22 L fuel tank combined with electronic fuel injection delivers extended range and excellent fuel efficiency — ideal for long-distance patrol and transport in farms, mines, forests, and scenic areas
  • • 230 kg maximum load capacity covers personnel transport, tool hauling, and material delivery with a single vehicle, eliminating the need for multiple vehicles and reducing overall procurement costs

Specifications

ModelJL620A
Length × Width × Height (mm)2235 × 1180 × 1390
Wheelbase (mm)1480
Minimum Ground Clearance (mm)270
Curb Weight (kg)425
Maximum Load Capacity (kg)230
Fuel tank capacity (L)22
Max Speed (km/h)80
Motor TypeSingle-cylinder, water-cooled, four-stroke, SOHC, four-valve
Displacement (cc)580
Max. Horsepower / Corresponding RPM45HP/6500rpm
Maximum Torque / Corresponding Speed51N.m/6000rpm
Fuel supply methodElectronic Fuel Injection (EFI)
Transmission TypeCVT (H, L, N, R, P)
Drive TypeElectronic 2WD/4WD switching with differential lock
Brake TypeFour-wheel disc brakes + manual rear wheel parking brake.
Suspension TypeDouble-wishbone independent suspension
Shock Absorber TypeProgressive-rate coil spring with hydraulic damping

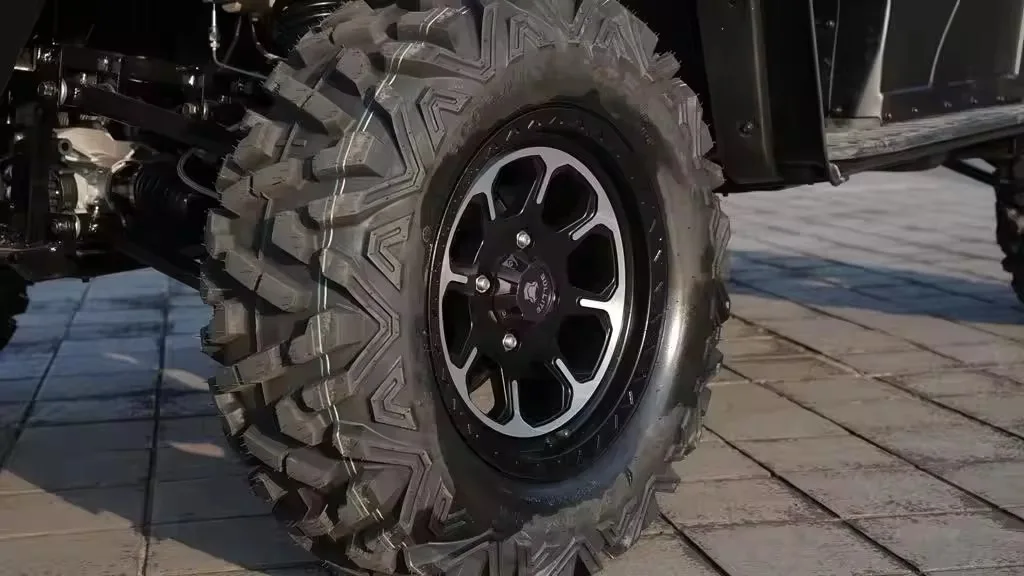

Tire SpecificationFront 25×8-8PR-AT / Rear 25×10-8PR-AT
Steering ModeElectric Power Steering (EPS)
Unlock MethodNFC/Mobile App/Key
Smart ConnectivityPhone Mirroring, Media Playback, Navigation, and Incoming Call Alerts
Packaging dimensions2300×1300×860 (mm) / 500 kg
Available ColorsSilver Gray / Dark Blue / Black
Packing & Container LoadingPackaging: Individually packaged Container loading: 27 pcs/40HQ

* Specifications are theoretical values under standard test conditions; actual performance may vary with load, terrain, temperature and usage. Specifications are subject to change without notice.

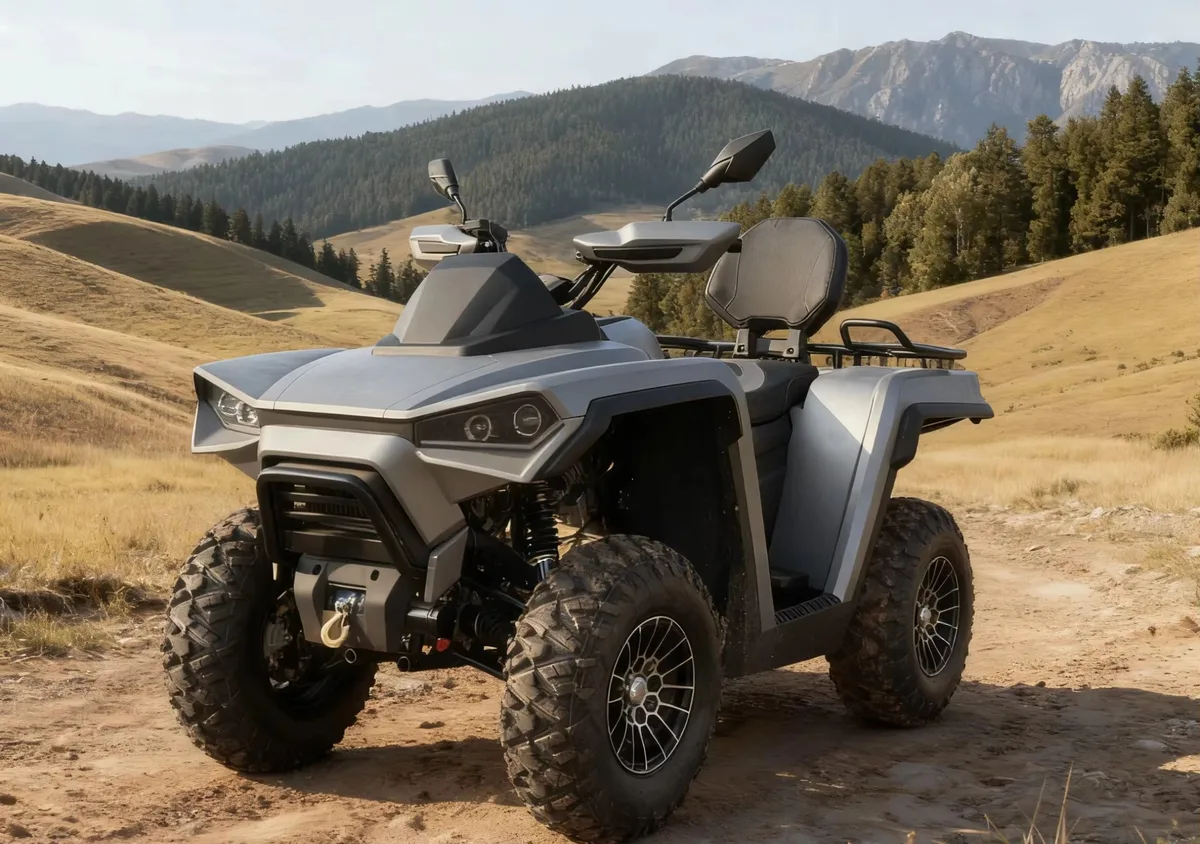

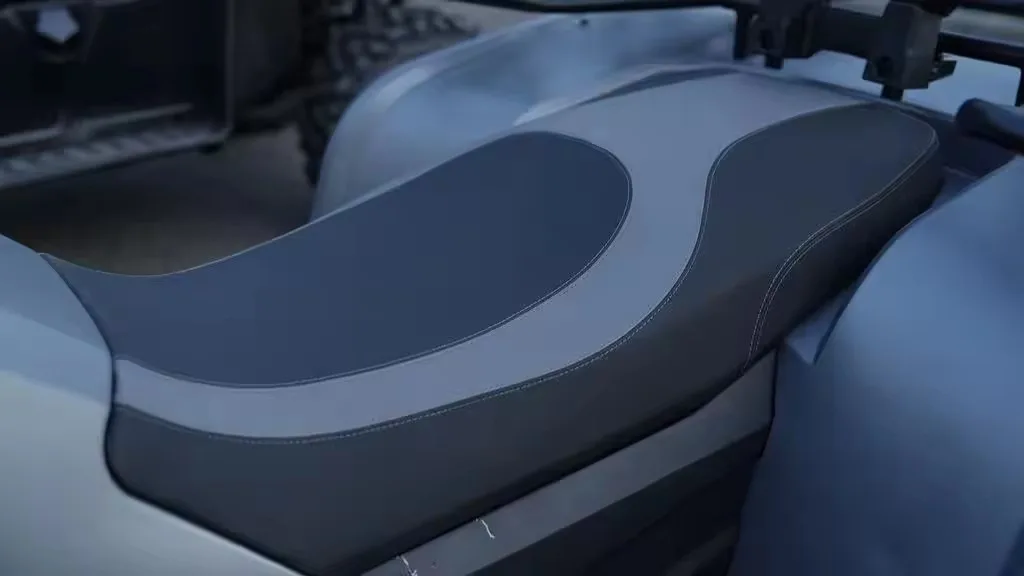

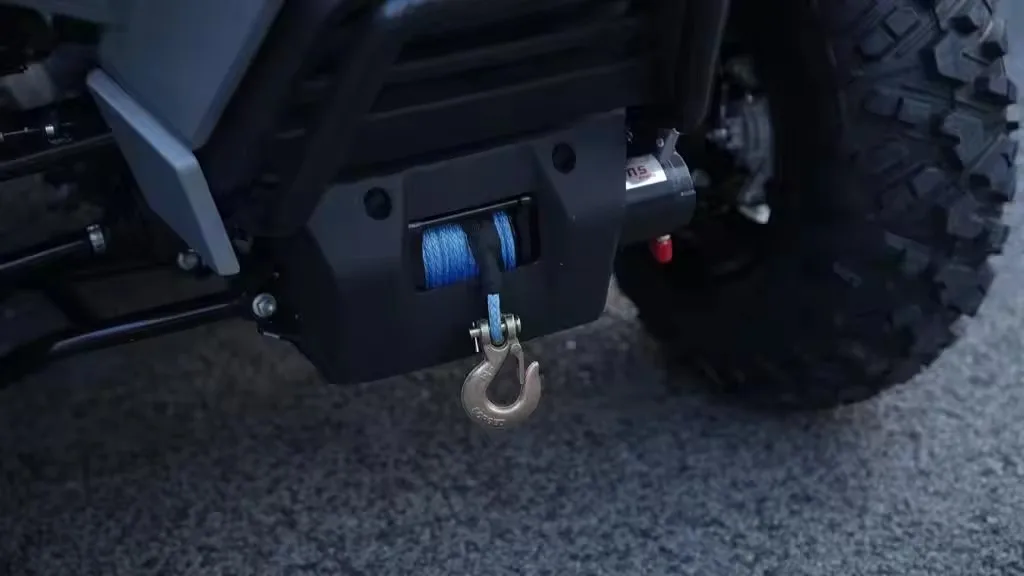

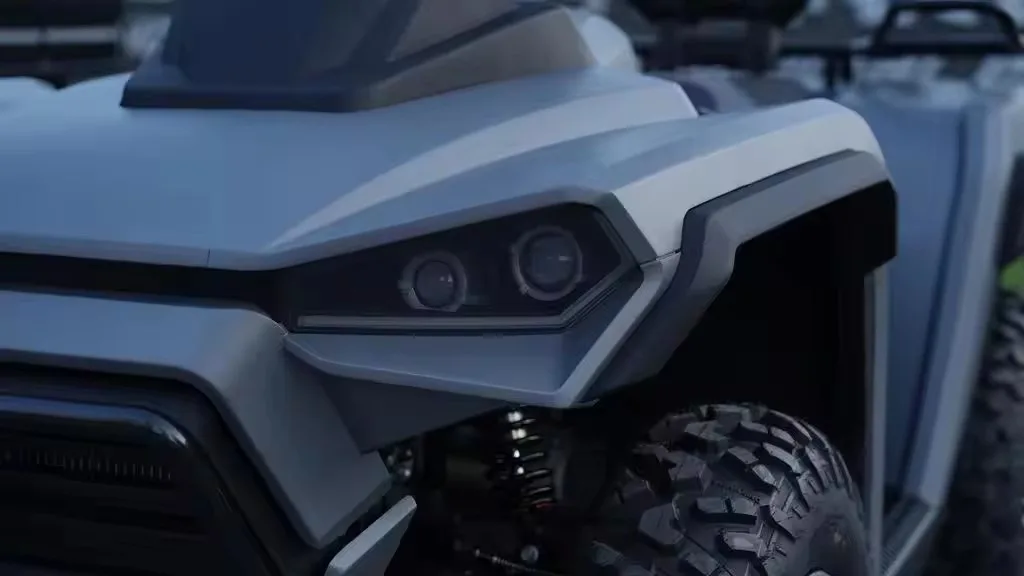

Product Details

product detailproduct detailproduct detailproduct detailproduct detailproduct detailproduct detailproduct detailproduct detail

Product Video

Related Products

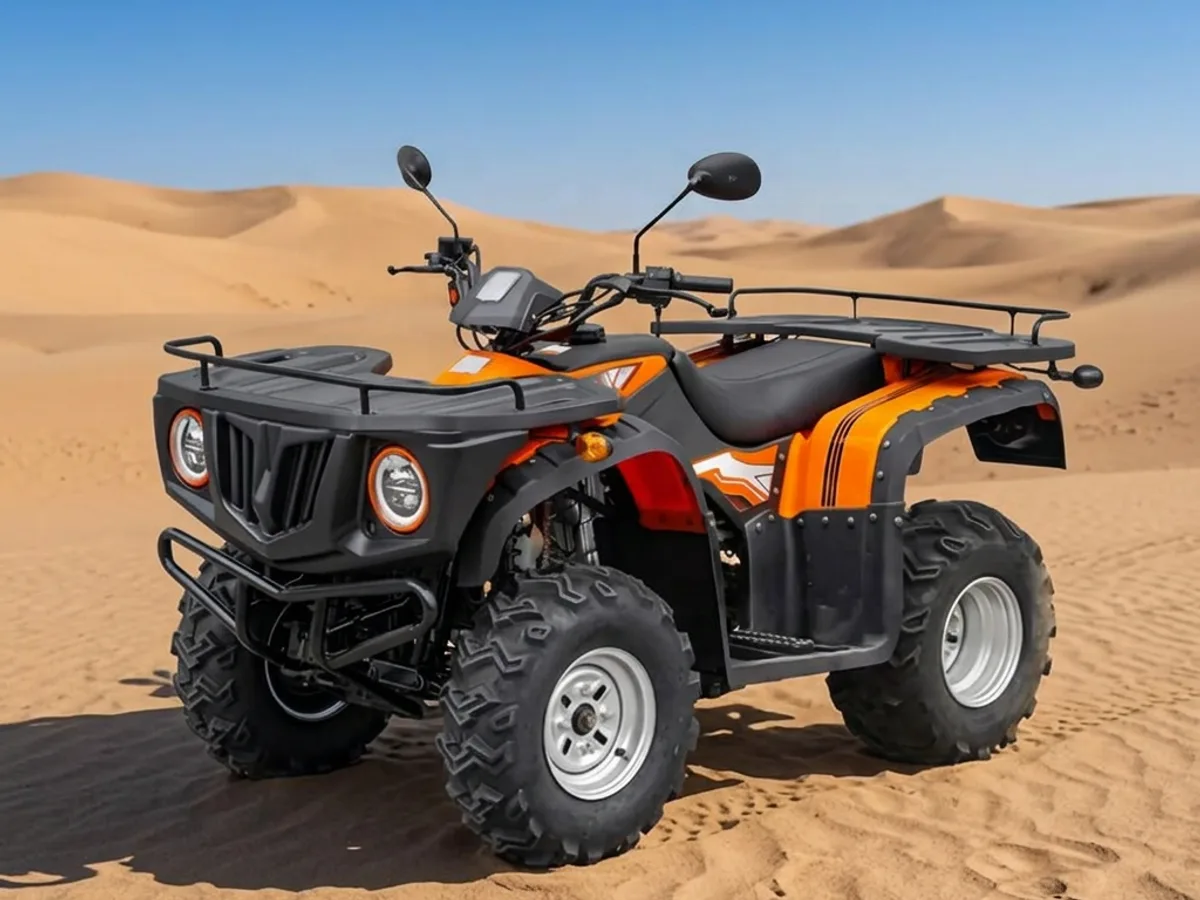

300cc Four-Stroke Water-Cooled 4x4 Utility ATV – Shaft Drive, Locking Differential, 200kg Payload
